1 WG1664440083 Long cab rear suspension left lower bracket (940-300 frame/lightweight)
2 WG1664440084 Long cab rear suspension right lower bracket (940-300 frame/lightweight) (symmetrical with left part)
3 ZQ1811675TF6 Hexagon flange face toothed bolt M16*1.5
4 ZQ32516T13F6 Hexagon flange face toothed nut M16*1.5
5 WG1664440023 Cab rear suspension transition bracket assembly
6 ZQ1811695TF6 Hexagon flange toothed bolt M16 * 1.5
7 ZQ32516T13F6 Hexagon flange toothed nut M16 * 1.5

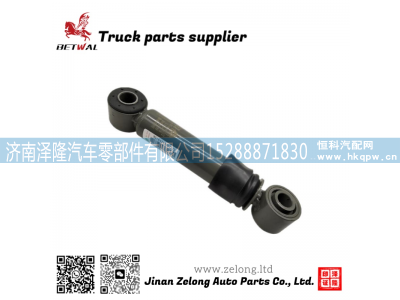

8 AZ1664440069 cab rear shock absorber assembly (air spring/395sus)
9 ZQ1811490TF6 Hexagon flange face toothed bolt M14 * 1.5
10 ZQ32514T13F6 Hexagon flange face toothed nut M14 * 1.5
11 WG1664440101 Hydraulic Lock Assembly
12 AZ1664440091 Spacer
13 ZQ1811480TF6 Hexagon flange face toothed bolt M14*1.5
14 ZQ32514T13F6 Hexagon flange face toothed nut M14*1.5
15 WG1642440021 Lateral stability shock absorber assembly
16 WG1642440033 Bushing III
17 Q40214 Large washer
18 Q18414150 Hexagon Flange Bolt
19 Q33014 All-metal hexagon flange self-locking nut
20 WG1664440034 Bushing Ⅱ
21 ZQ18114110TF6 Hexagon flange face toothed bolt M14 * 1.5
22 ZQ32514T13F6 Hexagon flange face toothed nut M14 * 1.5
23 WG1664447027 Left push rod bracket assembly
24 ZQ150B0610 Hexagon head bolt M6
25 Q40306 Spring washer
26 WG1664440066 Height valve connecting bracket
27 Q1460825 Hexagon head bolt, spring washer and flat washer assembly
28 ZQ340B08 Type 1 hexagon nut M8
29 WG1642440051 Height Control Valve Assembly
30 Q1460860 Hexagon head bolt, spring washer and flat washer assembly
31 ZQ340B08 Type 1 hexagon nut M8
32 Q5100620 Pin
33 AZ1664430270 Nylon washer
34 Q40106 Flat washer
35 Q5002012 Cotter
36 WG1664447024 Adjust push rod assembly
37 WG1664440050 upper left bracket assembly 001
38 WG1664440051 Upper right bracket assembly (symmetrical with left part)
39 ZQ1840825 Hexagon flange bolt M8
40 WG1608444099 Stop washer
41 WG1642430081 Stop block assembly
42 Q40310 Spring washer
43 Q40210 Large washer
44 ZQ340B10 Type 1 hexagon nut M10 * 1.5
45 WG1642440052 Cab Lock Signal Switch
46 Q2360620 Cross recessed pan head screw, spring washer and flat washer assembly
47 WG9925820221 Single Bend Hose (4300)
48 WG9000361316 T-shaped tee joint body 3-NW4
49 WG9003171356 Plastic fastening belt A5*280
50 190003179782 Polyamide tube (φ 6 * 1) 750
51 190003179782 Polyamide tube (φ 6 * 1)
52 190003179782 Polyamide tube (φ 6 * 1)
53 190003179782 Polyamide tube (φ 6 * 1)
54 WG9000361107 Straight-through connector NG6/NW4
