1 AZ9725360020 Combination pedal bracket 1
2 WG9719360051 Mandrel assembly 1
3 WG9719360055 Brake pedal assembly 1
4 WG9719360060 Self-lubricating bushing 2
5 WG9123230226 Pedal rubber cover 1
6 WG9719360005 Brake master valve (δ p = 0.3) 1
7 Q173B0845 Hexagon head screw hole bolt 1
8 WG9719360062 Pin shaft 1
9 WG9719360063 Tappet 1
10 Q5002016 Cotter pin 1
11 WG9123360067 Plug (2819602003691) 1
12 Q340B08 Type 1 hexagon nut 1
13 Q33208 Type 2 all-metal hexagon lock nut 4
14 WG9000361011 Blocking NG8-M16×1.5 1
15 WG9000361004 Elastic element NG8 1
16 WG9000361005 Clip spring NG8 1
17 WG9000361006 Nut seat NG8 1

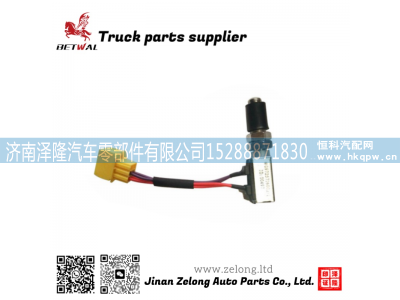

18 WG9725716002 Two-contact brake light switch 1
19 AZ9725230010 Clutch control part (common rail) 1
20 Q150B0845 Hexagon head bolt 1
21 Q1840616 Hexagon flange bolts 1
22 Q341B08 Type I Hexagon Nut-Fine Tooth 1
23 WG9719360099 Sealing tape (10m/disc) 1
24 WG9725360059 pull-off spring
