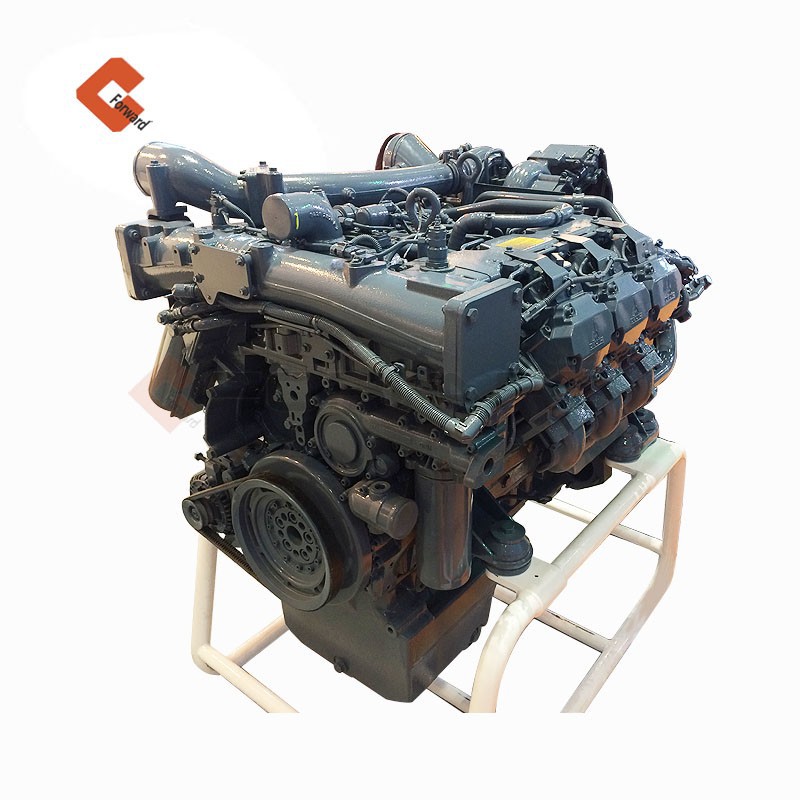

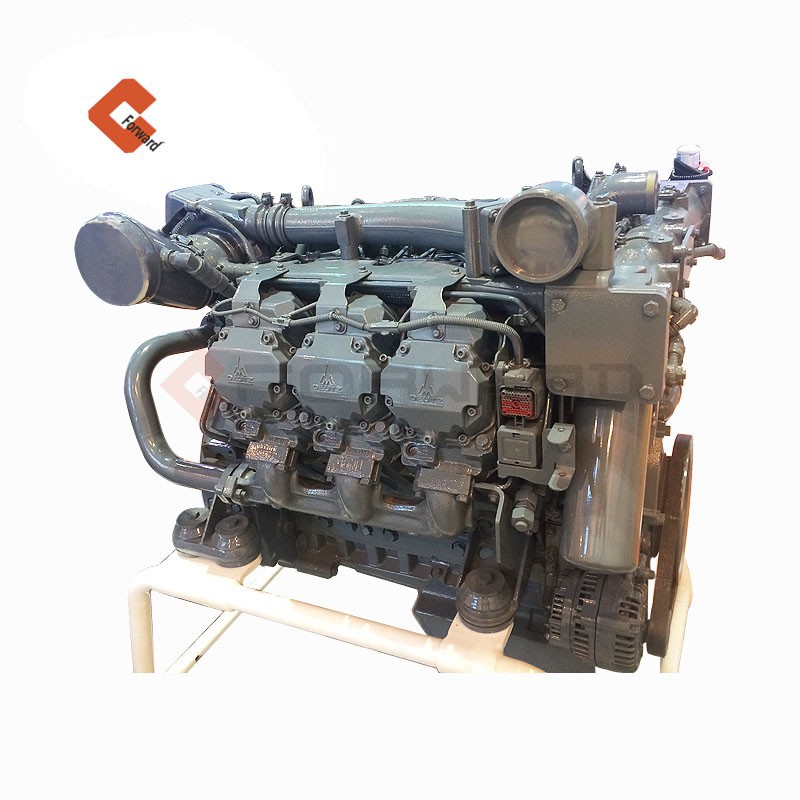

| Engine type | TCD12..0V6 | |
| In the form of | Vertical /V=90°/ water-cooled four-stroke | |
| Air inlet | Turbocharged inter-cooled | |
| High pressure pump type | High pressure common rail | |
| Number of cylinders | 6 | |
| Cylinder diameter/stroke | mm | 132/145 |
| Compression ratio | 17.5:1 | |
| The total emissions | L | 11.906 |
| Power/speed | Kw/r/ min | 420/2100 |
| Maximum torque | Nm | ≥2130 |
| Maximum torque speed | r/min | 1400 |
| weight | kg | 995 |
| Overall dimensions L*W*H | mm | 1140*945* 1168 |
| Feature | Small size, compact structure, large power, light weight, low noise, high reliability and long service life | |
| Application field | Heavy trucks, special vehicles, construction machinery |
